Full Automatic PET Horizontal Injection Molding Machine Garbage Can Injection

Name: Full Automatic PET Horizontal Injection Molding Machine Garbage Can Injection
Brand: OUCO
Price: 1 USD

Brand Name : OUCO

Model Number : OUCO-CWI-1350S III

Certification : CE, ISO9001:2008, SGS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 500 sets/year

Delivery Time : 2 months

Packaging Details : Nude

Product Name : Full Automatic PET Garbage Can Injection Molding Machine

Type : Automation

Function : Plastic Parts Production

Motor : Servo Energy Saving

Color : Support customization

Stable Performance : Short Cycle Time

Clamping Way : Hydraulic

Transport Package : FCL

Contact Now

13500 Kn Multi-Color Horizontal Injection Molding Machine

1. High efficient mixing of PET special screw, with the ceramic heating ring, significantly improves the melt glue speed and injection
2. Reduce the plasticizing temperature and the AA value. Effectively improve the contraction problem of products, and improve transparency.
3. The servo control system saves 30%~50% power better than the conventional machine.
4. The variable pump control system saves 20%~30% power more than conventional machines.
5. Special coated chrome PET screw with a large aspect ratio, fully meet the requirements of PET transparency and plastic quality, prevent accumulation of material, easy to clean.
6. Large top output and top stroke meet the needs of PET bottle embryo molding.
PET series bottle embryo special injection molding machine, the special plasticizing system is designed for PET forming characteristics. According to the characteristics of PET molding and the design of a special molding system, the machine specifications are complete, and suitable for a variety of different bottle embryo selections.

Parameters

MODEL		CWI-1350S III
CLAMPING UNIT	clamping force (kN)	13500
	Tie bar distance W×L (mm)	1420*1220
	Max.Daylight(mm)	3000
	Max. mold thickness (mm)	1400
	Min. mold thickness(mm)	650
	Platen Dimensions W×L (mm)	2100*1900
	Ejector Stroke(mm)	400
	Ejector Force(Kn)	341
	Ejector Quantily	25
	Injection unit	11000I
Injection Unit	Screw Diameter(mm)	110	120	130
	Screw L/D ratio	22.9	21	19.4
	Theoretical injection volume (cm3)	5461	6500	7628
	Shot Weight (PS) g	4969	5915	6941
	Injection Pressure(MPa)	209	176	145
	Injection Speed (mm/s)	85
	Injection Rate (cm3/s)	809.00	964.00	1131.00
	Screw Speed (rpm)	10-225
Other	Motor Power (Kw)	85
	pump capacity(L/min)	650
	Heater Power (Kw)	50+50+50+7.5
	Machine Weight (Ton)	65
	Machine size L×W×H (mm)	12500x3500x2900

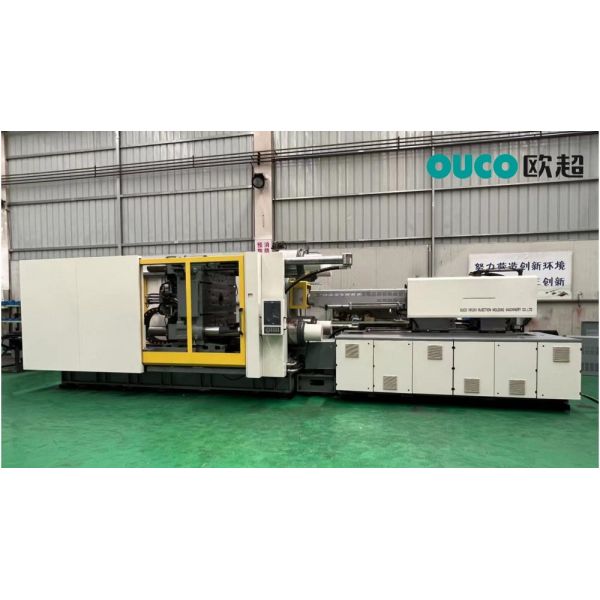

Detail Pictures
Full Automatic PET Horizontal Injection Molding Machine Garbage Can Injection

Full Automatic PET Horizontal Injection Molding Machine Garbage Can Injection
